Product Code: Catalogue No. not allocated
Rear arch extractor for FASTCLIP ‘FC PANDROL No. LP15177
The rear arch extractor remains available to extract clips around IBJ’s.
This tool is ONLY needed at IBJ’s in order to extract clips which are shielded by the scalloped section of the joint. It is also unique to FASTCLIP ‘FC’ and does NOT work with ‘FE’ clips.
Instructions for Rear Arch Extractor

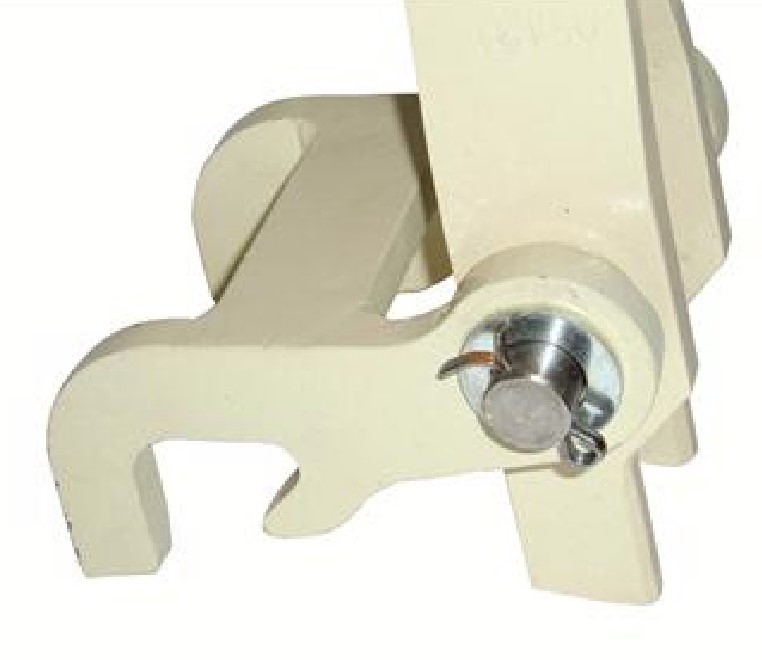

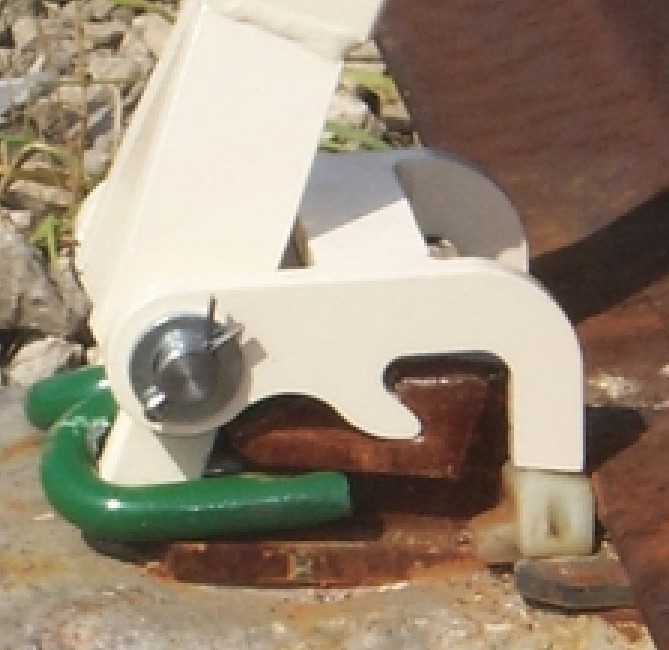

The hooks in the frame of the tool locate into the reaction points on the shoulder, as shown in the photograph. The clip is extracted using the tines inserted in the rear arches of the clip.
Once located grasp both handles of the ‘Tee’ bar, and stand ‘naturally’ with feet apart then move one leg half a pace back, to prevent loss of balance during clip extraction. Push the handle away to extract the clip, stopping at the ‘Parked’ position, or continuing to push away to fully extract the clip from the shoulder.
